Brand: MyAirbags
SKU: INV19138— Locked Airbag Module Reset
Module Name (Mazda): SRS SAS Unit (Supplemental Restraint System / Airbag Control Module)
Vehicles: Mazda CX‑50 (2021, 2022, 2023, 2024, 2025)
Primary Part #: VA4057K30
Supersessions: VA40‑57‑K30

Why the Airbag Light Stays On After Repairs (and How MyAirbags Fixes It

The Mazda CX‑50’s Supplemental Restraint System is designed to protect you during a collision—and to protect itself afterward. When the vehicle detects a crash or a severe impact, the SAS Unit (airbag control module) records the event and locks. That lock preserves critical crash data for diagnostics, but it also leaves the airbag light on even after you’ve replaced or repaired physical components like airbags, seatbelt pretensioners, and sensors. Clearing codes with a scan tool usually fails because the crash record is stored in non‑volatile memory.

MyAirbags solves this last mile of the repair by resetting your original VA4057K30 SAS Unit (and its supersessions). You ship your module under SKU 48906, we clear crash/event memory, bench‑test the unit, and return your same module ready to reinstall—typically plug‑and‑play once any external SRS issues are addressed. If you still need airbag replacements or seatbelt pretensioner repair, those are separate MyAirbags services—this page focuses on the module reset.

Order SKU INV19138 and send your VA4057K30 SAS Unit to MyAirbags for a professional crash‑data reset and bench test.

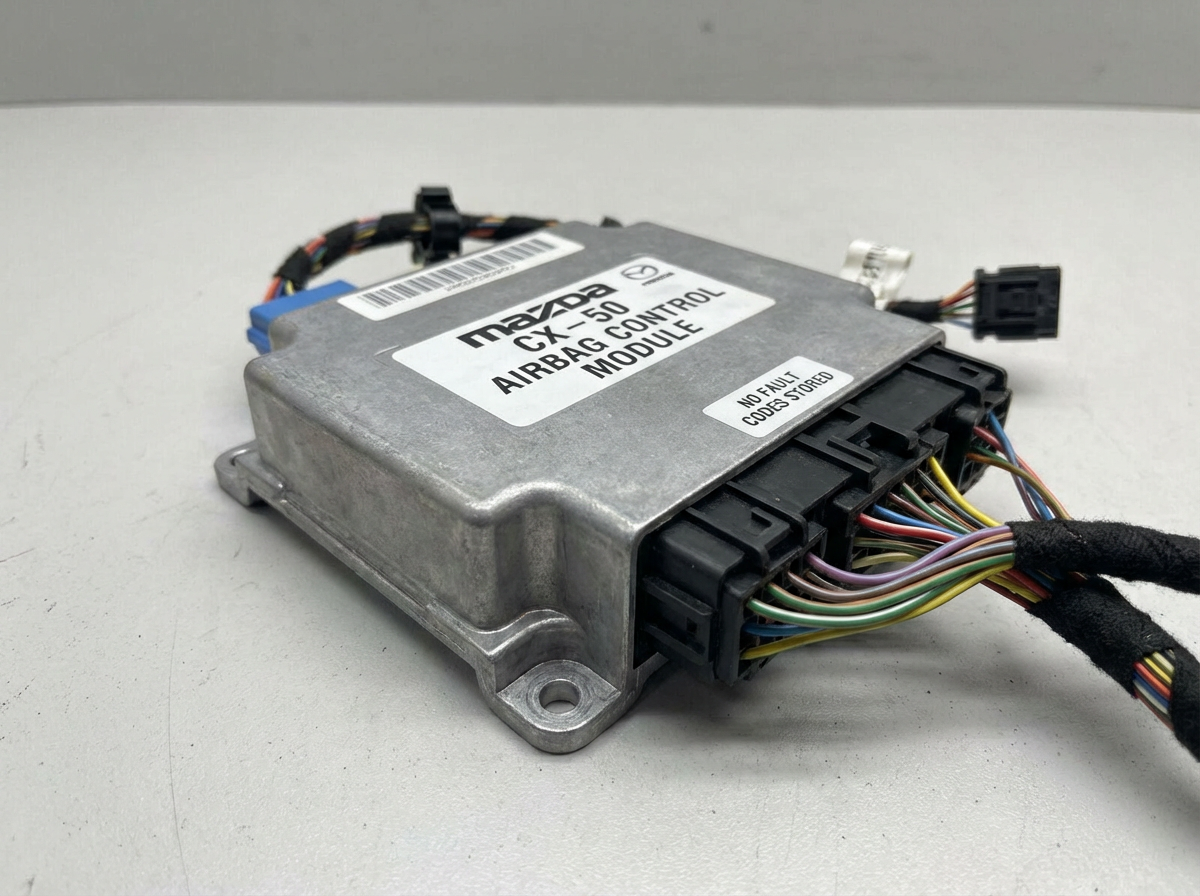

What the SAS Unit Does (and Where It’s Located)

• Monitors impact sensors, seat occupancy, airbags, and pretensioners.

• Commands deployment when thresholds are met; logs crash events for diagnostics.

• Stores DTCs and crash data in non‑volatile memory; ordinary clears won’t remove a locked crash record.

• Typical location: center tunnel under the console (location may vary slightly by trim).

• Connectors: Multi‑pin with locking tabs—do not pry on terminals.

Safety Note: Disconnect the 12V battery and wait the Mazda‑specified interval before working on any SRS component.

Service highlights

• SKU  INV19138 -  Locked Airbag Module Reset

• Starting price: $49.99*

• Turnaround: most jobs completed in 24 hours*

• OEM programming maintained: typically plug‑and‑play after reinstall

• Keep your original module: avoid dealer coding costs

*Pricing/turnaround commonly shown on MyAirbags service pages; can vary by workload and shipping.

Symptoms & DTCs of a Locked VA4057K30 Module

If crash memory is latched, you’ll typically see the SRS lamp on and one or more of these Diagnostic Trouble Codes:

Signal to act: If these codes reappear immediately after clearing or on the next key cycle—and airbags, belts, and sensors are already addressed—the module is still locked and needs a bench reset.

Fitment & Interchange

Vehicle coverage: Mazda CX‑50 2021–2025 (all trims)
Primary part number: VA4057K30
Mazda terminology: SAS Unit (also called Airbag Control Module / SRS Control Module; equivalent to RCM/SDM in other brands)

Supersessions treated as equivalent for this reset:

Confirm fitment: Read the white label. If it shows VA4057K30 or VA40‑57‑K30, this service applies. Do not mix with other families (e.g., VA6057K30)—calibrations differ.

Service Scope — What’s Included (and What Isn’t)

This reset service includes:

• Clearing crash/event memory from the SAS Unit’s non‑volatile storage

• Preserving your vehicle’s configuration (we do not alter VIN or calibrations)

• Bench testing key functions after reset

• Returning your same unit ready to reinstall (plug‑and‑play in most cases)

This reset service does not include:

• Repairing external SRS components (airbags, pretensioners, sensors, clockspring, wiring)

• Undoing severe water/fire/impact damage to the module

• Bypassing active component or wiring faults

• Programming a used module from another vehicle

Need airbags or seatbelt pretensioner repair? MyAirbags provides those as separate services—order alongside this reset if needed.

Step‑by‑Step: How MyAirbags Handles Your Module

1. Order SKU INV19138 and print your packing slip/RMA.

2. Remove the SAS Unit (see the quick guide below). Disconnect battery; follow SRS precautions.

3. Package the module: antistatic bag + foam; pad all six sides; no loose hardware.

4. Ship to MyAirbags with your contact info and return address in the box.

5. Reset & Test: We clear crash memory and bench‑test the unit.

6. Return & Reinstall: Reinstall, clear any non‑crash DTCs, and verify the SRS lamp cycles off.

Packaging Tips (Prevent Transit Damage)

• Use a sturdy box; immobilize the unit with foam/bubble on all sides.

• Place the module in an antistatic bag; avoid materials that shed into connectors.

• Do not ship bolts/screws loose in the box.

• Mark the outside of the box with SKU INV19138 for receiving.

Quick Removal Guide (CX‑50 2021–2025)

• Disconnect the 12V battery (negative first) and wait per Mazda service manual.

• The SAS Unit is typically on the center tunnel under the console.

• Remove trim carefully; use plastic tools to protect clips and finishes.

• Photograph connectors; depress locking tabs—no prying on pins.

• Keep the label intact for part verification.

• Store flat; keep dry; avoid magnetic fields.

Always follow Mazda service procedures and torque specs during reinstallation.

Installation & Post‑Reset Verification

1. Reconnect battery; cycle ignition OFF → ON without cranking.

2. Confirm the SRS lamp illuminates and turns off after the bulb check.

3. Scan for codes. If any component DTCs remain (e.g., airbag or pretensioner circuit), resolve those separately.

4. Complete any Mazda‑specified calibrations after collision repair (e.g., occupant classification zero‑point where applicable).

5. Road‑test, re‑scan, and confirm no SRS faults return.

Troubleshooting After Reset

• Airbag or pretensioner circuit DTCs persist: Inspect connectors, clockspring, squib wiring, grounds.

• Occupant/seat sensor faults: Check harness; perform calibration per Mazda manual.

• Voltage‑related codes: Verify battery/charging system and main grounds.

• Intermittent during drive: Inspect impact sensors and harness routing for chafing or loose pins.

2022 Mazda CX‑50 (Preferred)

• Symptoms: SRS lamp on after repairs; B1206:00‑08 and B1A55:00‑08 reappeared after clears.



• Action: Customer mailed VA40‑57‑K30 (supersession).

• Result (MyAirbags reset): Crash memory cleared; plug‑and‑play reinstall; lamp off after bulb check; road test passed.

FAQs

Does MyAirbags handle airbags and seatbelts too?
Yes. We offer airbag solutions and seatbelt pretensioner repair as separate services. This page focuses on the SAS Unit reset.

Will a scan tool clear these crash codes?
Not permanently. Crash data is stored in non‑volatile memory; codes often return on the next key cycle without a bench reset.

Do I need to reprogram the module after your reset?
Usually no—because it’s your original unit matched to the car, it’s typically plug‑and‑play once external faults are addressed.

Can you reset a water‑ or fire‑damaged module?
Severe damage may be non‑repairable. Send photos before shipping so we can advise.

What if the airbag light is still on after reinstall?
Scan and resolve any remaining component DTCs (airbags, belts, sensors, clockspring). Those are outside the module reset scope.

Do you change my VIN or coding?
No. We clear crash/event memory only—we do not modify VIN or calibrations.

Can I send a used module from another car instead?
We recommend resetting your original module. Used units may carry incompatible configuration or crash data.

Is this service the same as “refurbished”?
No. This is your original module, reset and tested.

How long does the process take?
Turnaround is fast and shop‑friendly. Actual times depend on shipping and workload.

Will this fix collision‑avoidance warnings too?
If those warnings stem solely from crash memory in the SAS Unit, the reset typically clears them. Sensor/calibration issues must be handled separately.

2023 Mazda CX‑50 (Turbo)

• Symptoms: U2107:00‑48 (collision mitigation) plus B1193:00‑8B after front‑end repair.

• Action: Shipped VA4057K30.

• Result (MyAirbags reset): Module reset and verified; SRS readiness restored; no additional programming required.

Finish the Repair the Right Way with MyAirbags

The CX‑50’s SRS is engineered to lock the control module after a deployment. That design keeps crash data intact—but it also means the airbag light stays on until the event memory is professionally cleared. With MyAirbags, you keep your original VA4057K30 module, avoid unnecessary replacement costs, and restore proper SRS readiness once external faults are addressed. If the dash warning persists or codes like B1A55 and B1206 keep returning, completing this final step is what gets the system back to normal.

Order SKU INV19138 and send your VA4057K30 SAS Unit to MyAirbags today. We’ll clear crash data, test the unit, and return it ready to reinstall—so your Mazda’s safety system works the way it was designed to.
