If your Lexus vehicle was involved in an accident/collision, or you are a dealer or a body shop that is rebuilding a vehicle that you have purchased at an auction such as Copart or IAAI (Insurance Auto Auction), then you will love MyAirbags. We are here to save you hundreds of dollars resetting your

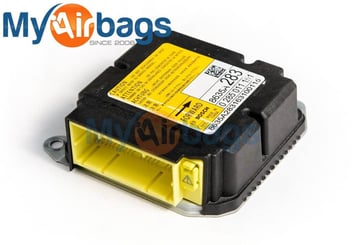

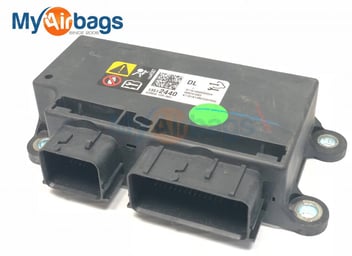

airbag control module and
rebuilding your seat belts.
SRS Airbag DTC Codes
Even after a minor accident the airbag may not deploy but the seat belts will lock and airbag module will need to be reset because of crash data and crash codes that are stored in the airbag module. MyAirbags will reset your airbag control module back to its original manufacturer state clear of all codes, both soft and hard codes. Typically, these codes will indicate that there is crash data stored, airbags deployed, communication failure, a full memory, or other airbag, seat belt related issues. Regardless of which issue these codes are indicating, they require to be sent to MyAirbags for reset because of the crash history and hard codes that are stored in the airbag control module. These codes and crash data will not clear with a diagnostic scanner. Below you will find common airbag codes that can be stored in your airbag control module after your vehicle was in an accident.Airbag Module Reset (plug-n-play)
The best part of having your Lexus's original airbag module reset by MyAirbags is that when you get your airbag control module back and it goes back into the same vehicle that it came out of then it will be plug-n-play. No additional programming of the VIN is required. This is an alternative to purchasing a new or used airbag module that will need to be taken to the dealership to have the new or used airbag control module programmed to your vehicle. Send your airbag control module to MyAirbags and save time, money and not having to deal with a dealership!Seat Belt Repair
During an accident, seat belt retractors and tensioners are deployed and will lock up by their gas charges, similarly to how airbags are deployed in a collision. After an accident or collision, the seat belts will be locked or will no longer work properly. Your seat belts will lock and will not work pull out or retract back in. MyAirbags can rebuild your seat belt and will save you hundreds of dollars on each seat belt. Seat belts usually cost between $200-$350 per seat belt, MyAirbags can rebuild the at a fraction of that cost. MyAirbags is certified and uses all OEM parts to rebuild seat belts. So, how do you know that your seat belts are malfunctioning or damaged after a collision? A few common symptoms include:- Locked seat belts
- Seat belts not retracting
- Slow seat belts
- Seat belts that are tight
- Compressed seat belt buckles
- Airbag code: pretensioner resistance too low
- Airbag code: pretensioner resistance too high
- Seat belts making rattling noise
Ready to Order?
Our services are easy to use and will save you hundreds!
MyAirbags is proud to offer SRS Airbag Module Reset and Seat Belt Repair services to get your Lexus back on the road again safely. Avoid the unnecessary expensive dealership prices and trust in MyAirbags to repair and return your airbag module and your seat belts within 24 hours of receiving it, 100% guaranteed or money back! Click here to start your order! Questions? Call us at 888-779-9029 M-F 9-5 ESTLexus DTC Trouble Codes
| DTC | Description |
| 32 | Bad module - Was vehicle in accident? - Needs replacement - Check Stock - B1650 |
| B0100 | SHORT IN D SQUIB CIRCUIT |
| B0101 | OPEN IN DRIVERSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0102 | DRIVERSIDE AIR BAG SQUIB CIRCUIT SHORT TO GROUND |
| B0103 | DRIVERSIDE AIR BAG SQUIB CIRCUIT SHORT TO BATTERY |
| B0105 | SHORT IN PASSENGERSIDE AIR BAG SQUIB CIRCUIT |
| B0106 | OPEN IN PASSENGERSIDE AIR BAG SQUIB CIRCUIT |
| B0107 | SHORT TO GROUND IN PASSENGERSIDE AIR BAG SQUIB CIRCUIT |
| B0108 | SHORT TO BATTERY IN PASSENGERSIDE AIR BAG SQUIB CIRCUIT |
| B0110 | SHORT IN RIGHTSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0111 | OPEN IN RIGHTSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0112 | SHORT TO GROUND IN RIGHTSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0113 | SHORT TO BATTERY IN RIGHTSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0114 | LEFTSIDE AIR BAG SENSOR ASSEMBLY MALFUNCTION |
| B0115 | SHORT IN LEFTSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0116 | OPEN IN LEFTSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0116/48 | Driver Side Airbag Open in Side Squib (LH) Circuit |
| B0117 | SHORT TO GROUND IN LEFTSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0118 | SHORT TO BATTERY IN LEFTSIDE AIR BAG MODULE SQUIB CIRCUIT |
| B0130 | SHORT IN PASSENGERSIDE SEAT BELT PRETENSIONER SQUIB CIRCUIT |
| B0131 | OPEN IN PASSENGERSIDE SEAT BELT PRETENSIONER SQUIB CIRCUIT |
| B0132 | SHORT TO GROUND IN PASSENGERSIDE SEAT BELT PRETENSIONER SQUIB CIRCUIT |
| B0133 | SHORT TO BATTERY IN PASSENGERSIDE SEAT BELT PRETENSIONER SQUIB CIRCUIT |
| B0135 | SHORT IN DRIVERSIDE SEAT BELT PRETENSIONER SQUIB CIRCUIT |
| B0136 | OPEN IN DRIVERSIDE SEAT BELT PRETENSIONER SQUIB CIRCUIT |
| B0137 | SHORT TO GROUND IN DRIVERSIDE SEAT BELT PRETENSIONER SQUIB CIRCUIT |
| B0138 | SHORT TO BATTERY IN DRIVERSIDE SEAT BELT PRETENSIONER SQUIB CIRCUIT |
| B1000 | Air Bag Sensor Assembly Center (Send Airbag Module to us for Reset if car in accident) |
| B1000/31 | Center Airbag Sensor Assembly Malfunction (Send Airbag Module to us for Reset if car in accident) |
| B1100 | Air Bag Sensor Assembly Center |
| B1140 | RIGHTSIDE AIR BAG SENSOR ASSEMBLY MALFUNCTION |
| B1141 | Side Airbag in the seat (Driver side) |
| B1152 | PASSENGER AIRBAG ON/OFF INDICATOR LIGHT CIRCUIT MALFUNCTION |
| B1156 | RIGHT FRONT AIR BAG SENSOR MALFUNCTION |
| B1157 | RIGHT FRONT AIR BAG SENSOR MALFUNCTION |
| B1158 | Left Driver Side - Front airbag sensor - under the hood |
| B1159 | LEFT FRONT AIR BAG SENSOR MALFUNCTION |
| B1161 | Open in curtain shield airbag RH squib circuit |
| B1166 | Driver Side Roof Curtain Airbag Circuit Open |
| B1180 | SHORT IN D SQUIB (2ND STEP) CIRCUIT |
| B1181 | Open in Driver Side Squib 2nd Step Circuit |
| B1610 | Front Right-hand Air Bag Sensor Circuit |
| B1610/13 | Front Airbag Sensor RH Malfunction |
| B1612/83 | Lost Communication with Front Airbag Sensor RH |
| B1613 | front impact sensor, right side, front impact sensor, passenger side |
| B1613/83 | Front Airbag Sensor RH Initialization Incomplete |
| B1615 | Front Left-hand Air Bag Sensor Circuit |
| B1615/14 | Front Airbag Sensor LH Malfunction |
| B1617/84 | Lost Communication with Front Airbag Sensor LH |
| B1618/84 | Front Airbag Sensor LH Initialization Incomplete |
| B161A/8A | Lost Communication with Front Satellite Sensor Bus |
| B1620 | Front Left-hand Seat Air Bag Sensor Circuit |
| B1620/21 | Side Airbag Sensor RH Circuit Malfunction |
| B1622/81 | Lost communication with Side Airbag Sensor RH |
| B1623/81 | Side Airbag Sensor Assembly RH Initialization Incomplete |
| B1625 | Front Right-hand Seat Air Bag Sensor Circuit |
| B1625/22 | Side Airbag Sensor LH Circuit Malfunction |
| B1627/82 | Lost communication with Side Airbag Sensor LH |
| B1628/82 | Side Airbag Sensor Assembly LH Initialization Incomplete |
| B1630 | Rear Left-hand Air Bag Sensor Circuit |
| B1630/23 | Rear Airbag Sensor RH Circuit Malfunction |
| B1632/81 | Lost Communication with Rear Airbag Sensor RH |
| B1633 | Driver Side Rear Airbag Sensor Initialization Incomplete |
| B1633/81 | Rear Airbag Sensor Assembly RH Initialization Incomplete |
| B1635 | Rear Left-hand Air Bag Sensor Circuit |
| B1635/24 | Rear Airbag Sensor LH Circuit Malfunction |
| B1637/82 | Lost Communication with Rear Airbag Sensor LH |
| B1638 | Short in curtain shield airbag (LH) squib (2nd step) circuit (to B+) |
| B1638/82 | Rear Airbag Sensor Assembly LH Initialization Incomplete |
| B1642/81 | Lost Communication with Side Satellite Sensor Bus RH |
| B1643 | Driver Side Satellite Sensor Bus Initialization Incomplete |
| B1647/82 | Lost Communication with Side Satellite Sensor Bus LH |
| B1650 | Occupant Classification System |
| B1650/32 | Occupant Classification System Malfunction |
| B1653 | Seat Position Air Bag Sensor Circuit |
| B1655 | Left-hand Seat Belt Buckle Switch Circuit |
| B1656/38 | Seat Belt Buckle Switch LH Circuit Malfunction |
| B1660 | Passenger Air Bag On/Off Indicator Circuit |
| B1660/43 | Passenger Airbag ON/OFF Indicator Circuit Malfunction |
| B1677 | Rear Floor Airbag Sensor RH Initialization Incomplete |
| B1690/15 | Door Side Airbag Sensor RH Malfunction |
| B1692/81 | Lost Communication with Door Side Airbag Sensor RH |
| B1693/81 | Door Side Airbag Sensor RH Initialization Incomplete |
| B1695/16 | Door Side Airbag Sensor LH Malfunction |
| B1697/82 | Lost Communication with Door Side Airbag Sensor LH |
| B1698/82 | Door Side Airbag Sensor LH Initialization Incomplete |
| B1771 | Passenger Front Seat Belt Buckle Switch Circuit |
| B1780 | Front Left-hand Occupant Classification Sensor Circuit |
| B1781 | Front Right-hand Occupant Classification Sensor Circuit |
| B1782 | Rear Left-hand Occupant Classification Sensor Circuit |
| B1783 | Rear Right-hand Occupant Classification Sensor Circuit |
| B1785 | Front Left-hand Occupant Classification Sensor Collision Detection |
| B1786 | Front Right-hand Occupant Classification Sensor Collision Detection |
| B1787 | Rear Left-hand Occupant Classification Sensor Collision Detection |
| B1788 | Rear Right-hand Occupant Classification Sensor Collision Detection |
| B1790 | Center Air Bag Sensor Assembly Communication Circuit |
| B1793 | Occupant Classification Sensor Power Supply Circuit |
| B1795 | Occupant Classification ECU Circuit |
| B1796 | Sleep Operation Of Occupant Classification ECU Circuit |
| B1800 | Short In D Airbag - Circuit |
| B1800/51 | Short in Driver Side Squib Circuit |
| B1801 | Open In D Airbag - Circuit |
| B1801/51 | Open in Driver Side Squib Circuit |
| B1802 | Short To Ground - In D Airbag - Circuit |
| B1802/51 | Short to GND in Driver Side Squib Circuit |
| B1803 | Short To Battery Power (12 volts) In D Airbag - Circuit |
| B1803/51 | Short to B+ in Driver Side Squib Circuit |
| B1805 | Short In P Airbag - Circuit |
| B1805/52 | Short in Front Passenger Side Squib Circuit |
| B1806 | Open In P Airbag - Circuit |
| B1806/52 | Open in Front Passenger Side Squib Circuit |
| B1807 | Short To Ground - In P Airbag - Circuit |
| B1807/52 | Short to GND in Front Passenger Side Squib Circuit |
| B1808 | Short To Battery Power (12 volts) In P Airbag - Circuit |
| B1808/52 | Short to B+ in Front Passenger Side Squib Circuit |
| B1810 | Short In D Airbag - (Dual Stage-2nd Step) Circuit |
| B1810/53 | Short in Driver Side Squib 2nd Step Circuit |
| B1811 | Open In D Airbag - (Dual Stage-2nd Step) Circuit |
| B1811/53 | Open in Driver Side Squib 2nd Step Circuit |
| B1812 | Short To Ground - In D Airbag - (Dual Stage-2nd Step) Circuit |
| B1812/53 | Short to GND in Driver Side Squib 2nd Step Circuit |
| B1813 | Short To Battery Power (12 volts) In D Airbag - (Dual Stage 2nd Step) Circuit |
| B1813/53 | Short to B+ in Driver Side Squib 2nd Step Circuit |
| B1815 | Short In P Airbag - (Dual Stage-2nd Step) Circuit |
| B1815/54 | Short in Front Passenger Side Squib 2nd Step Circuit |
| B1816 | Open In P Airbag - (Dual Stage-2nd Step) Circuit |
| B1816/54 | Open in Front Passenger Side Squib 2nd Step Circuit |
| B1817 | Short To Ground - In P Airbag - (Dual Stage-2nd Step) Circuit |
| B1817/54 | Short to GND in Front Passenger Side Squib 2nd Step Circuit |
| B1818 | Short To Battery Power (12 volts) In P Airbag - (Dual Stage 2nd Step) Circuit |
| B1818/54 | Short to B+ in Front Passenger Side Squib 2nd Step Circuit |
| B1820 | Short In Left-hand Side Airbag - Circuit |
| B1820/55 | Short in Side Squib RH Circuit |
| B1821 | Open In Left-hand Side Airbag - Circuit |
| B1821/55 | Open in Side Squib RH Circuit |
| B1822 | Short To Ground - In Left-hand Side Airbag - Circuit |
| B1822/55 | Short to GND in Side Squib RH Circuit |
| B1823 | Short To Battery Power (12 volts) In Left-hand Side Airbag - Circuit |
| B1823/55 | Short to B+ in Side Squib RH Circuit |
| B1825 | Short In Right-hand Side Airbag - Circuit |
| B1825/56 | Short in Side Squib LH Circuit |
| B1826 | Open In Right-hand Side Airbag - Circuit |
| B1826/56 | Open in Side Squib LH Circuit |
| B1827 | Short To Ground - In Right-hand Side Airbag - Circuit |
| B1827/56 | Short to GND in Side Squib LH Circuit |
| B1828 | Short To Battery Power (12 volts) In Right-hand Side Airbag - Circuit |
| B1828/56 | Short to B+ in Side Squib LH Circuit |
| B1830 | Short In Left-hand Roof Panel Airbag - Circuit |
| B1830/57 | Short in Curtain Shield Squib RH Circuit |
| B1831 | Open In Left-hand Roof Panel Airbag - Circuit |
| B1831/57 | Open in Curtain Shield Squib RH Circuit |
| B1832 | Short To Ground - In Left-hand Roof Panel Airbag - Circuit |
| B1832/57 | Short to GND in Curtain Shield Squib RH Circuit |
| B1833 | Short To Battery Power (12 volts) In Left-hand Roof Panel Airbag - Circuit |
| B1833/57 | Short to B+ in Curtain Shield Squib RH Circuit |
| B1835 | Short In Right-hand Roof Panel Airbag - Circuit |
| B1835/58 | Short in Curtain Shield Squib LH Circuit |
| B1836 | Open In Right-hand Roof Panel Airbag - Circuit |
| B1836/58 | Open in Curtain Shield Squib LH Circuit |
| B1837 | Short To Ground - In Right-hand Roof Panel Airbag - Circuit |
| B1837/58 | Short to GND in Curtain Shield Squib LH Circuit |
| B1838 | Short To Battery Power (12 volts) In Right-hand Roof Panel Airbag - Circuit |
| B1838/58 | Short to B+ in Curtain Shield Squib LH Circuit |
| B1850/62 | Short in Rear Side Squib RH Circuit |
| B1851/62 | Open in Rear Side Squib RH Circuit |
| B1852/62 | Short to GND in Rear Side Squib RH Circuit |
| B1853/62 | Short to B+ in Rear Side Squib RH Circuit |
| B1855/63 | Short in Rear Side Squib LH Circuit |
| B1856/63 | Open in Rear Side Squib LH Circuit |
| B1857/63 | Short to GND in Rear Side Squib LH Circuit |
| B1858/63 | Short to B+ in Rear Side Squib LH Circuit |
| B1860 | Short In Driver Knee Blocker Air Bag Module Airbag - Circuit |
| B1860/64 | Short in Driver Side Knee Airbag Squib Circuit |
| B1861 | Open In Driver Knee Blocker Air Bag Module Airbag - Circuit |
| B1861/64 | Open in Driver Side Knee Airbag Squib Circuit |
| B1862 | Short To Ground - In Driver Knee Blocker Air Bag Module Airbag - Circuit |
| B1862/64 | Short to GND in Driver Side Knee Airbag Squib Circuit |
| B1863 | Short To Battery Power (12 volts) In Driver Knee Blocker Air Bag Module Airbag |
| B1863/64 | Short to B+ in Driver Side Knee Airbag Squib Circuit |
| B1865 | Short In Passenger Knee Blocker Air Bag Module Airbag - Circuit |
| B1865/65 | Short in Front Passenger Side Knee Airbag Squib Circuit |
| B1866 | Open In Passenger Knee Blocker Air Bag Module Airbag - Circuit |
| B1866/65 | Open in Front Passenger Side Knee Airbag Squib Circuit |
| B1867 | Short To Ground - In Passenger Knee Blocker Air Bag Module Airbag - Circuit |
| B1867/65 | Short to GND in Front Passenger Side Knee Airbag Squib Circuit |
| B1868 | Short To Battery Power (12 volts) In Passenger Knee Blocker Air Bag Module |
| B1868/65 | Short to B+ in Front Passenger Side Knee Airbag Squib Circuit |
| B1871 | front seat side airbag is disconnected |
| B1876 | Seatbelt Driver Pretensioner Circuit Failure |
| B1900 | Short In Left-hand Driver Side Seat Belt |
| B1900/73 | Short in Front Pretensioner Squib RH Circuit |
| B1901 | Open In Left-hand P/T Airbag - Circuit |
| B1901/73 | Open in Front Pretensioner Squib RH Circuit |
| B1902 | Short To Ground - In Left-hand PIT Airbag - Circuit |
| B1902/73 | Short to GND in Front Pretensioner Squib RH Circuit |
| B1903 | Short To Battery Power (12 volts) In Left-hand PR Airbag - Circuit |
| B1903/73 | Short to B+ in Front Pretensioner Squib RH Circuit |
| B1905 | Short In Right-hand P/T Airbag - Circuit |
| B1905/74 | Short in Front Pretensioner Squib LH Circuit |
| B1906 | Open In Right-hand P/T Airbag - Circuit |
| B1906/74 | Open in Front Pretensioner Squib LH Circuit |
| B1907 | Short To Ground - In Right-hand PR Airbag - Circuit |
| B1907/74 | Short to GND in Front Pretensioner Squib LH Circuit |
| B1908 | Short To Battery Power (12 volts) In Right-hand PR Airbag - Circuit |
| B1908/74 | Short to B+ in Front Pretensioner Squib LH Circuit |
| B1920 | Short In Rear Left-hand P/T Airbag - Circuit |
| B1921 | Open In Rear Left-hand PR Airbag - Circuit |
| B1922 | Short To Ground - In Rear Right-hand P/T Airbag - Circuit |
| B1923 | Short To Battery Power (12 volts) In Rear Right-hand P/T Airbag - Circuit |
| B1925 | Short In Rear Right-hand PIT Airbag - Circuit |
| B1926 | Open In Rear Right-hand P/T Airbag - Circuit |
| B1927 | Short To Ground - In Rear Right-hand P/T Airbag - Circuit |
| B1928 | Short To Battery power In Rear Right-hand P/T Airbag - Circuit |
| B1941 | Air Bag Crash Sensor #1 Feed/Return Circuit Open |
Common Lexus Airbag Control Module Part Numbers
We reset all modules year 1997 and up. Below is a sample list of Lexus Airbag Module Part Numbers. If your part number is not on this list, no worries we still reset it as long as your vehicle is year 1997 and up.
To search this list, you can press Ctrl+F and use the search option| 8917033550 | 8917053700 | 8917024070 |
| 8917030231 | 8917060240 | 8917053210 |
| 8917030230 | 8917053590 | 8917075060 |
| 8917030340 | 8917060590 | 8917053250 |
| 891700E010 | 8917033860 | 8917030A60 |
| 8917053080 | 891700E021 | 891700E070 |
| 8917033350 | 8917048151 | 8917030680 |
| 891700W080 | 8917053560 | 8917048341 |
| 891700E020 | 891700E201 | 8917030520 |
| 8917053030 | 8917060152 | 8917048070 |
| 8917033470 | 8917033A00 | 8917050130 |
| 8917033530 | 8917060631 | 891700E030 |
| 8917053130 | 8917030630 | 891700E050 |
| 8917033430 | 8917078010 | 8917060A60 |
| 8917033200 | 8917060241 | 8917030B30 |
| 891700W040 | 8917024320 | 8917050180 |
| 8917053050 | 8917030B50 | 891700E170 |
| 8917060250 | 8917076210 | 8917033A40 |
| 8917033570 | 8917030F30 | 8917024060 |
| 8917060630 | 8917024110 | 8917006590 |
| 8917060150 | 8917048211 | 8917033660 |
| 8917048410 | 8917024090 | 8917076100 |
| 8917050170 | 8917060252 | 8917048210 |
| 891700E031 | 8917050830 |
| 8917006590 | 8917030A60 | 8917050830 |
| 891700E020 | 8917030B30 | 8917053080 |
| 891700E021 | 8917030F30 | 8917053130 |
| 891700E030 | 8917033100 | 8917053210 |
| 891700E031 | 8917033350 | 8917053250 |
| 891700E050 | 8917033430 | 8917053470 |
| 891700E070 | 8917033470 | 8917053560 |
| 891700E170 | 8917033530 | 8917053590 |
| 891700E201 | 8917033550 | 8917053700 |
| 891700W040 | 8917033570 | 8917060152 |
| 891700W080 | 8917033571 | 8917060240 |
| 8917024060 | 8917033660 | 8917060241 |
| 8917024070 | 8917033A00 | 8917060252 |
| 8917024090 | 8917033A40 | 8917060590 |
| 8917024110 | 8917048070 | 8917060630 |
| 8917024130 | 8917048210 | 8917060631 |
